Selective laser sintering (SLS)

A laser fuses nylon powder layer by layer. Surrounding powder supports the part, so complex shapes need no support structures.

Ask about this method All 3D printing methods

SLS printer powder bed after a build layer. Representative process photo · Creative Tools from Halmstad, Sweden · CC BY 2.0 · Wikimedia Commons

How it works

Selective laser sintering (SLS), step by step.

A labelled schematic of the process (not to scale), and the four steps every job goes through.

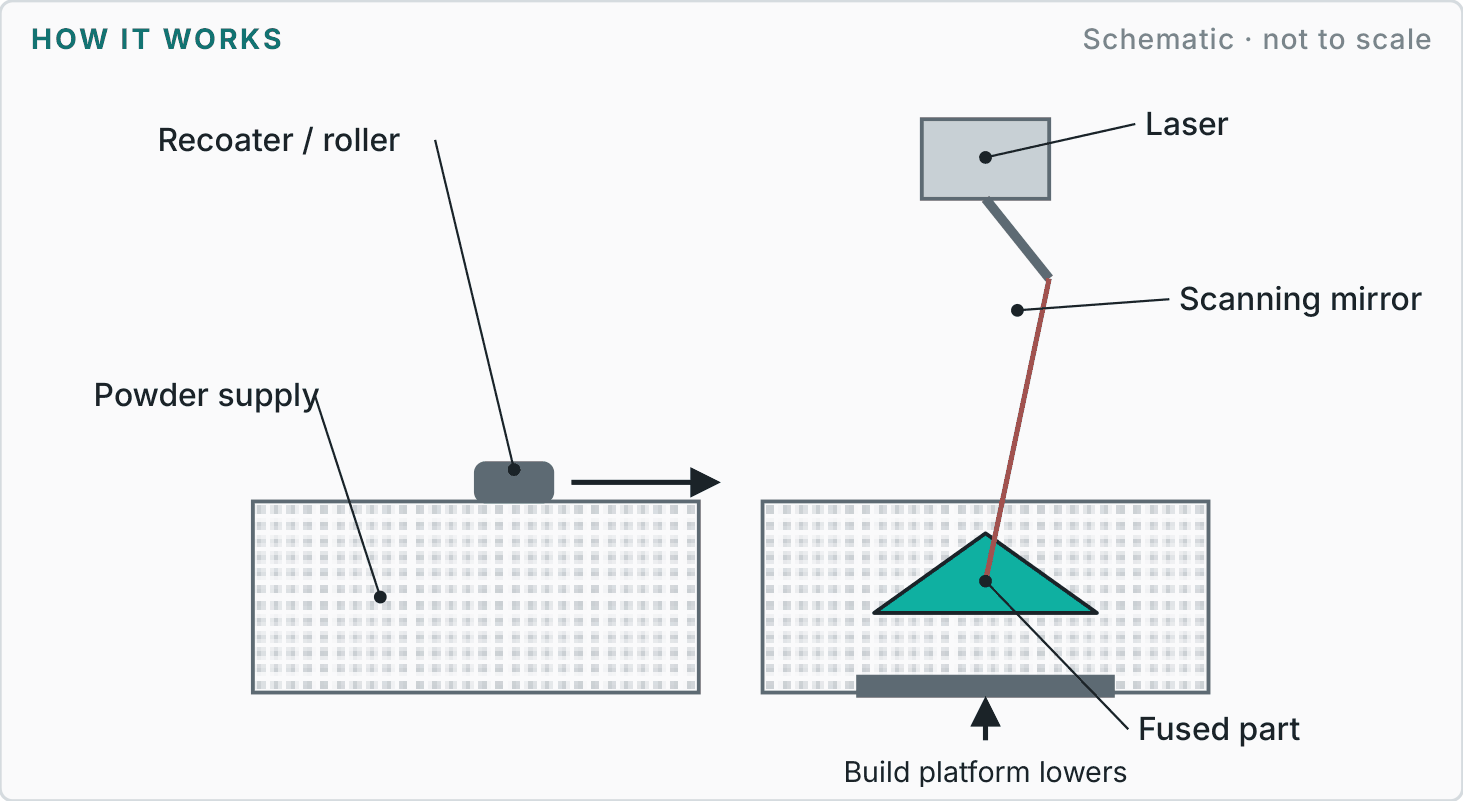

Labelled diagram showing how selective laser sintering (sls) works — Schematic · not to scale. Drawn by TCI Group.

STEP 01

Spread

A recoater spreads a thin layer of powder.

STEP 02

Sinter

The laser fuses the cross-section.

STEP 03

Repeat

The bed drops; the next layer is spread.

STEP 04

Cool & clean

Cool the build; blast off loose powder.

Reference figures

What to expect.

Typical industry values to help you plan. We agree the figures for your part on the drawing.

Tolerance±0.38 mm or ±0.002 mm/mmNylon 12, whichever greater

Tpu±0.51 mmOr ±0.003 mm/mm

FinishRa 8–13 µmAs printed

Min Feature~0.8 mmRaised features

Materials	Nylon 12, Nylon 11, glass and carbon-filled nylon, TPU, PP.
Finishes	Grainy matte as standard; dyed black, bead blasted, vapour smoothed or painted.
Design guidance	Keep walls even; large flat areas may warp. Add escape holes for hollow parts. Holes under 1 mm may sinter shut.
Best suited to	Functional prototypes, housings, ducts and short production runs.
Watch-outs	Grainy surface; tight tolerances need engineering review.
