3, 4 & 5-axis machining

Extra rotary axes let the cutter reach more faces in one set-up. Essential for complex mould cores and sculpted master patterns.

Ask about this method All CNC machining methods

Multi-tasking machining centre with a tilting spindle. Representative process photo · Hunini · CC BY-SA 4.0 · Wikimedia Commons

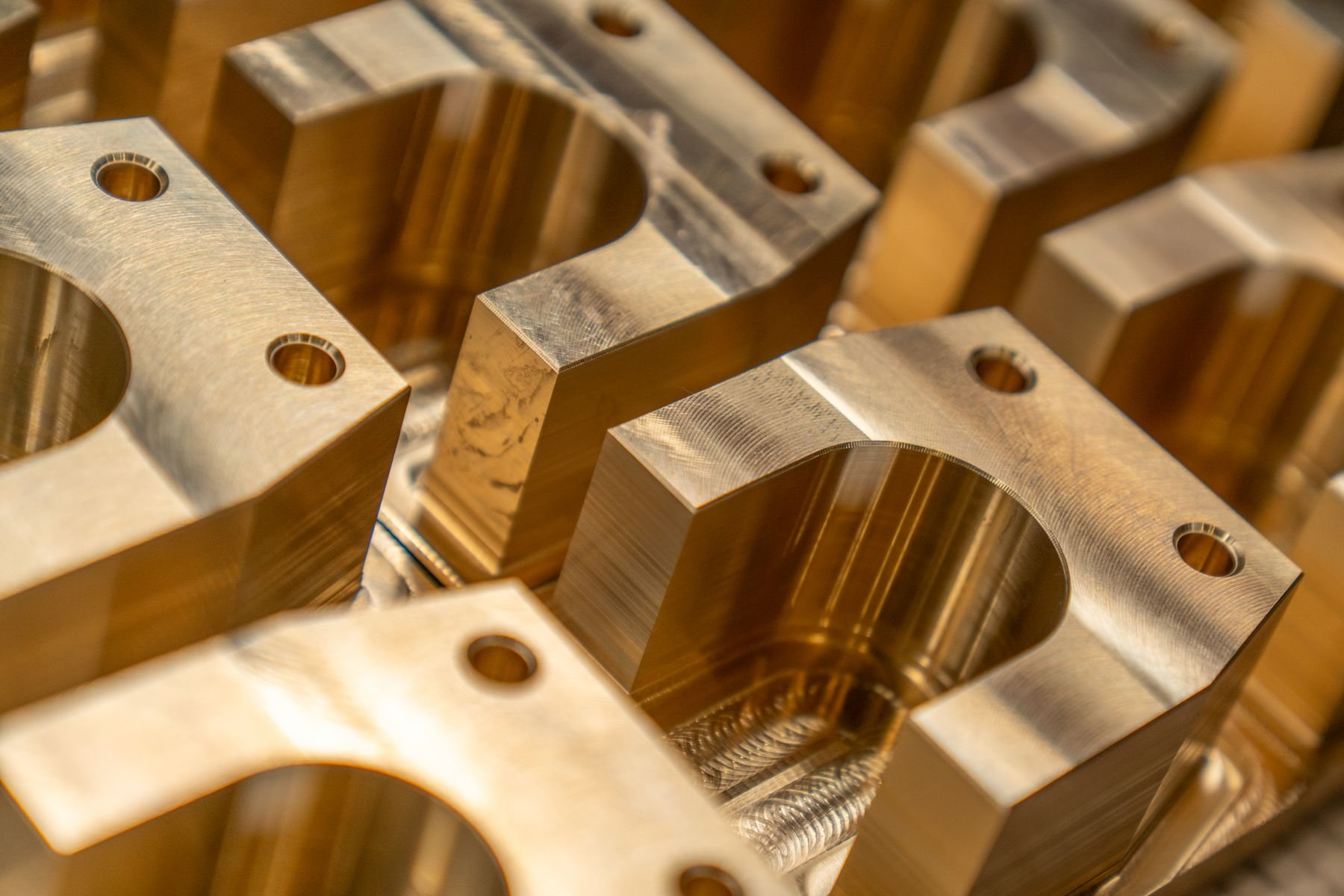

Precision-machined parts with multiple machined faces. Representative process photo · Connor Lucock · Pexels

How it works

3, 4 & 5-axis machining, step by step.

A labelled schematic of the process (not to scale), and the four steps every job goes through.

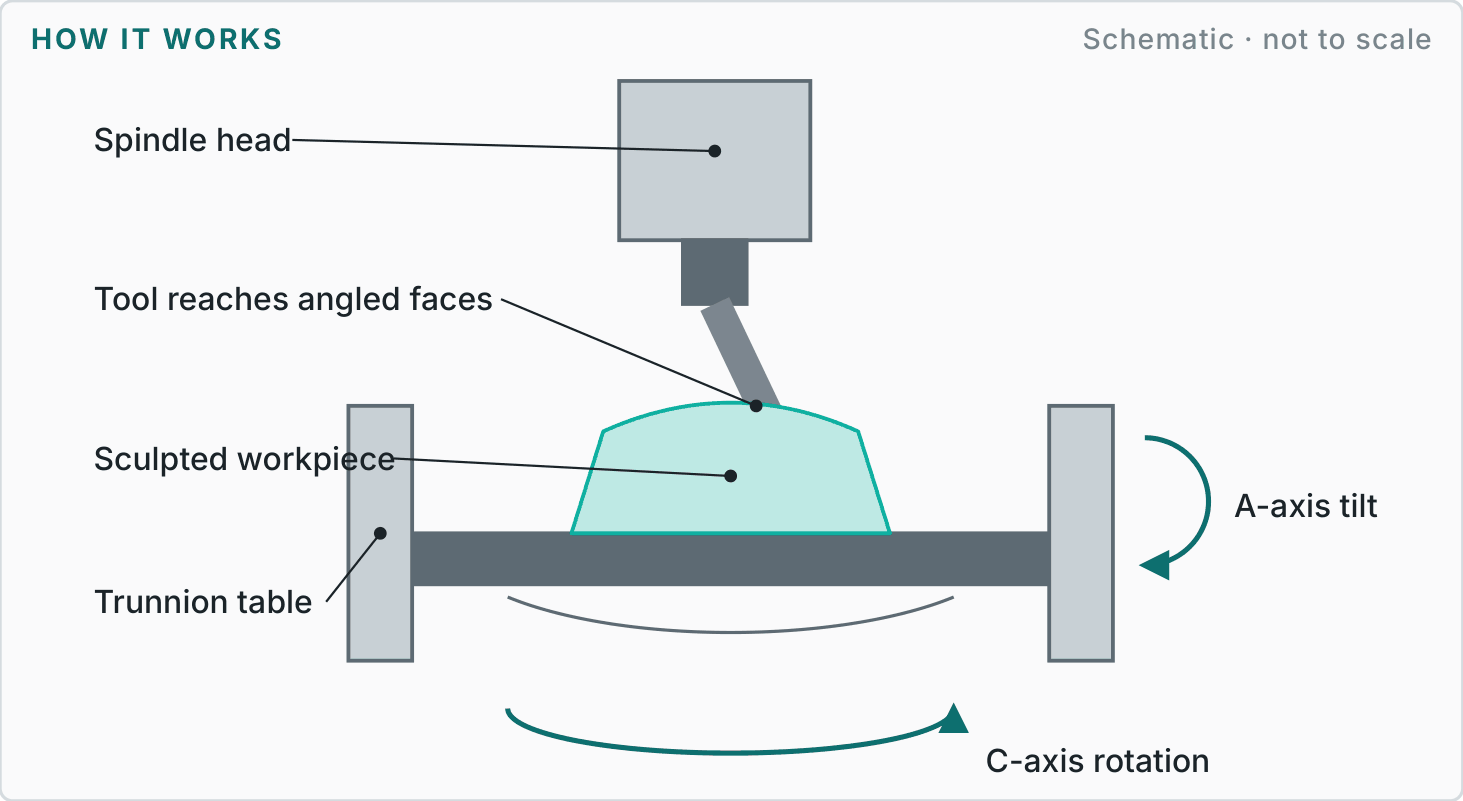

Labelled diagram showing how 3, 4 & 5-axis machining works — Schematic · not to scale. Drawn by TCI Group.

STEP 01

3-axis

X, Y and Z: prismatic parts, one face at a time.

STEP 02

4-axis

Adds rotation about one axis for side features.

STEP 03

5-axis

Two rotary axes: tilted tools reach undercuts.

STEP 04

Single set-up

Fewer re-clamps mean better feature alignment.

Reference figures

What to expect.

Typical industry values to help you plan. We agree the figures for your part on the drawing.

Tolerance±0.13 mm metalsStandard reference

Set-UpsFewerBetter datum control

SurfacesFreeformSculpted and organic

CostHigher per hourLower per complex part

Materials	Aluminium, tool steels, stainless, titanium; tooling board and engineering plastics.
Finishes	Fine finishing passes give smooth freeform surfaces; polishing for mould tools.
Design guidance	Let the toolpath, not the drawing, drive surface finish. Avoid features that need very long, thin tools. State which surfaces are cosmetic.
Best suited to	Mould cores and cavities, impellers, sculpted masters and aerospace parts.
Watch-outs	Programming time is significant for one-offs.
